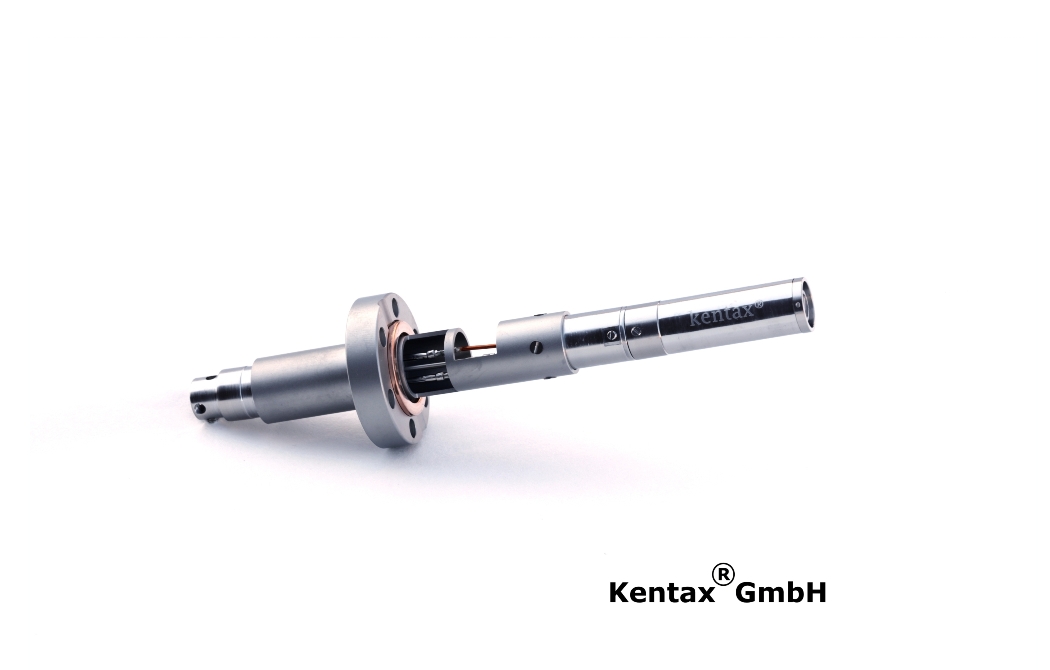

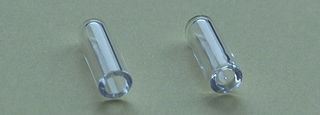

Example to install a point source on a CF16 flange

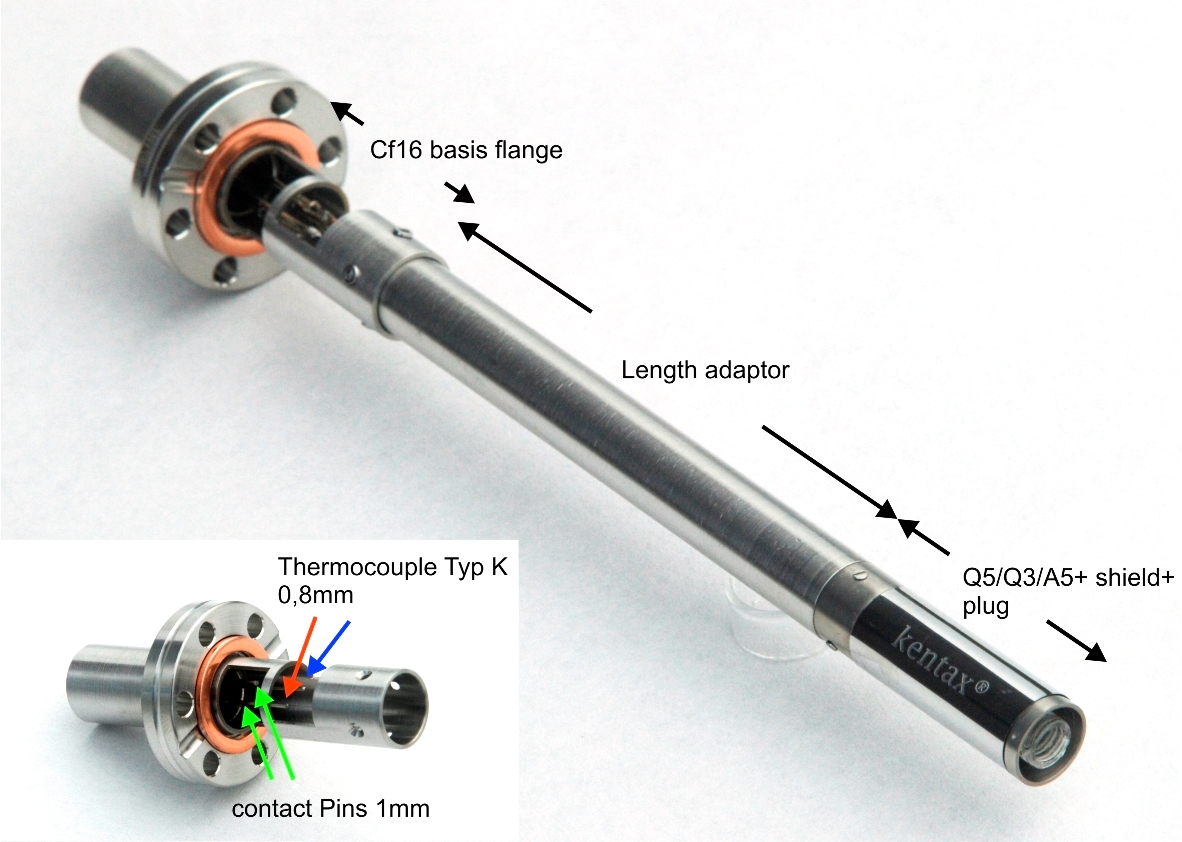

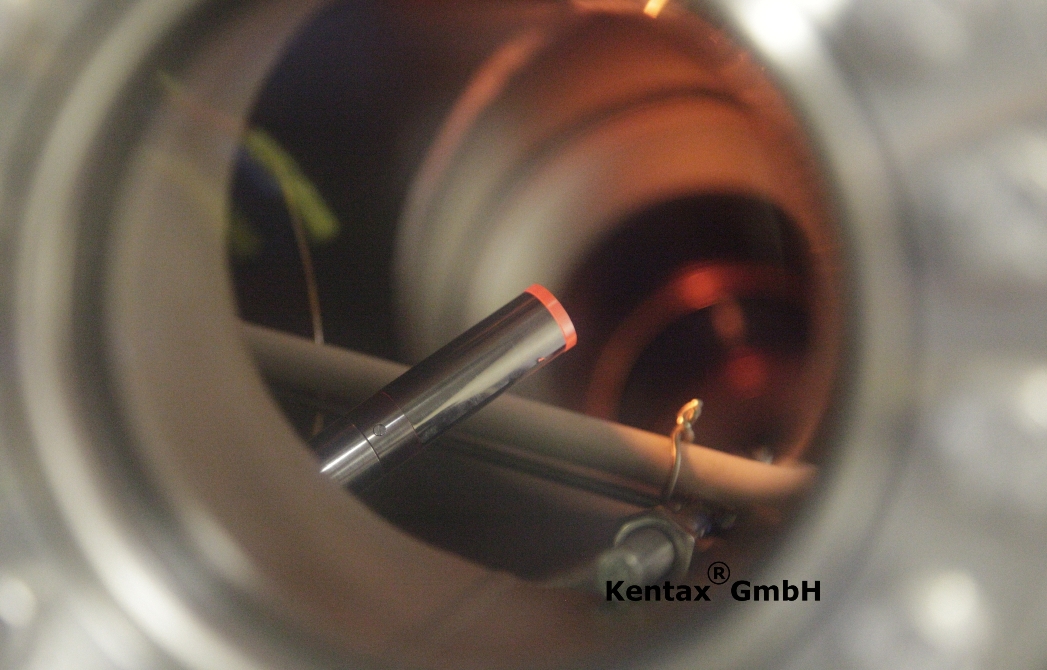

The image show a Q5 point source with double shield on a CF16 flange.
Due to fast decay curve and low power consumption these arrangement works without shutter and cooling.
The length adapter allows adaptation to UHV systems of the user.

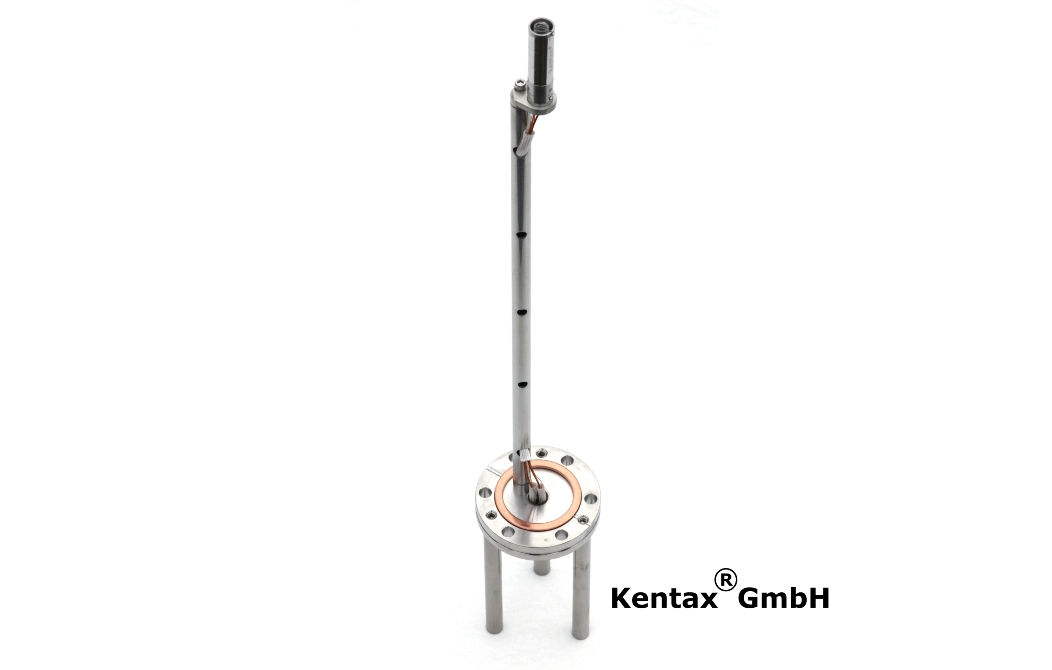

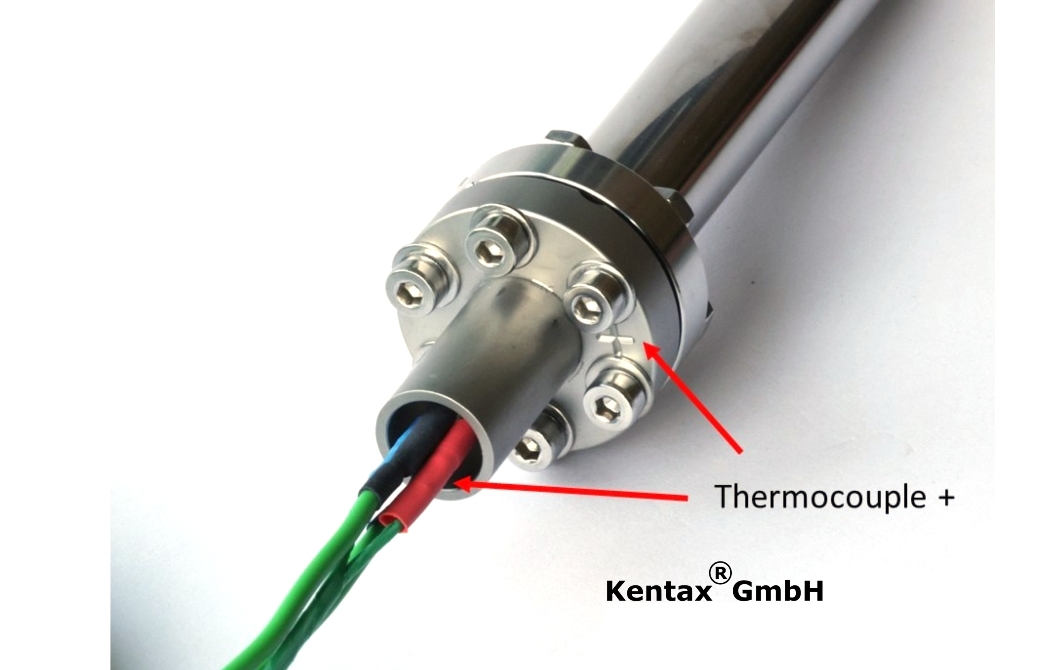

Point source on CF16 flange

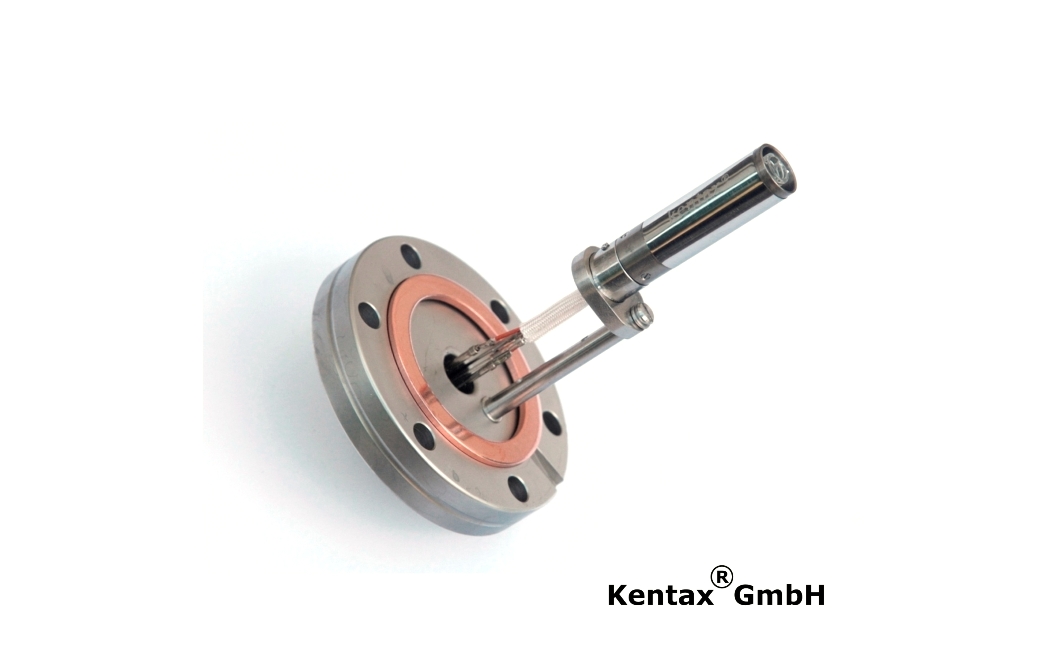

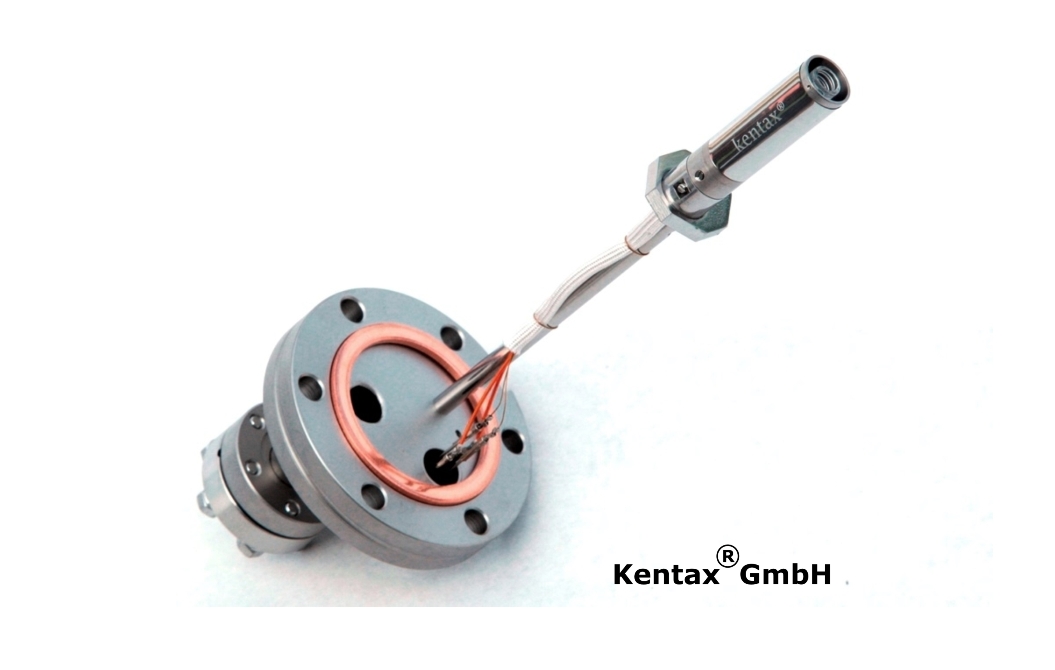

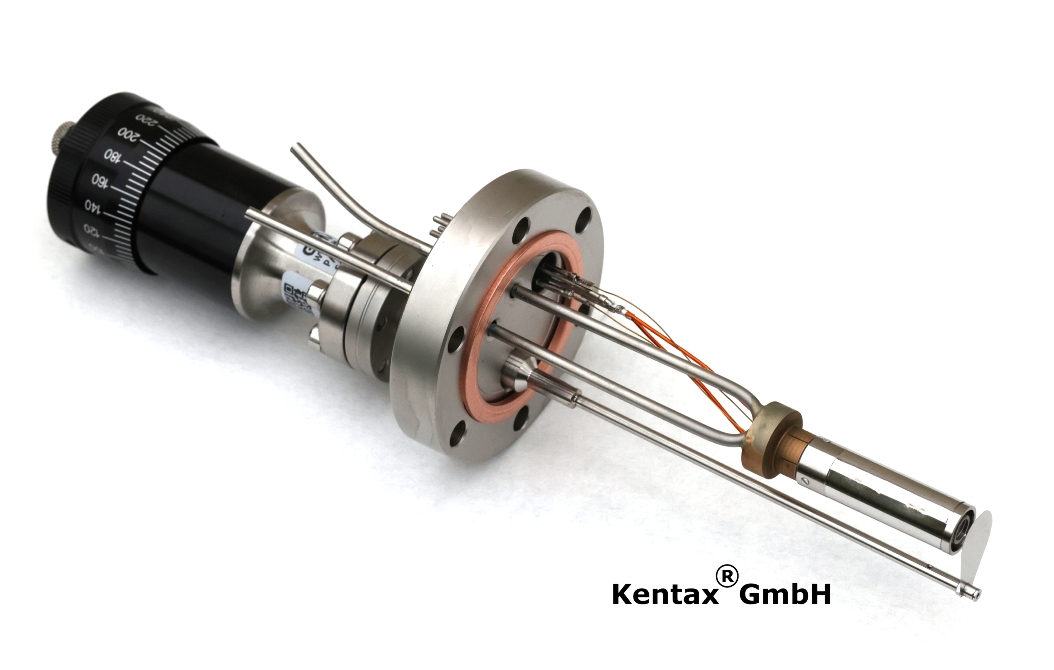

Example to install a point source on a CF40 flange

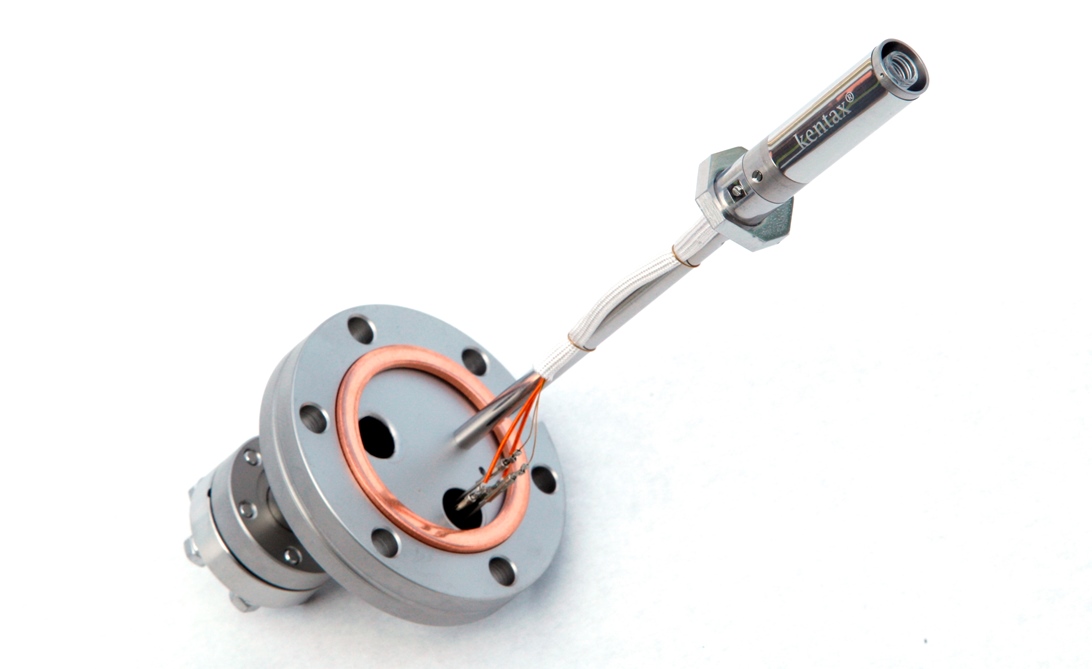

The pictures show four CF40 flanges that can be used to mount the point source with connector in a simple way.
The plug of the point source can be mounted in a cooling- or simple ring. This allows a setup of different lengths in vacuum and/or with cooling and shutter.

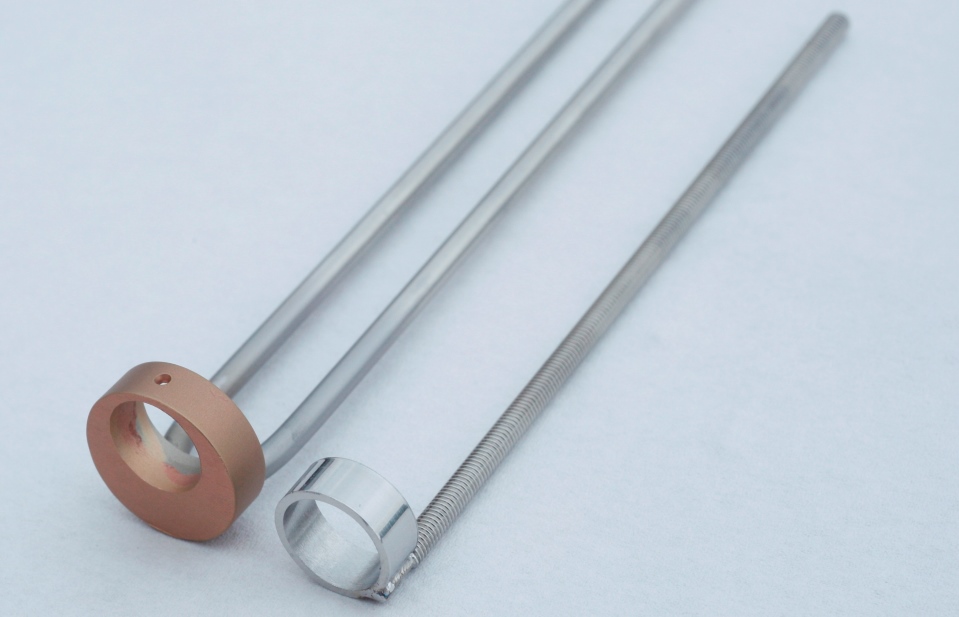

Cooling- and simple ring
Cooling tank for water or N2 (liquid/gas) on the left side (for flanges No. 2 and 4)
Simple ring on the right side (for flanges No. 1 and 3)

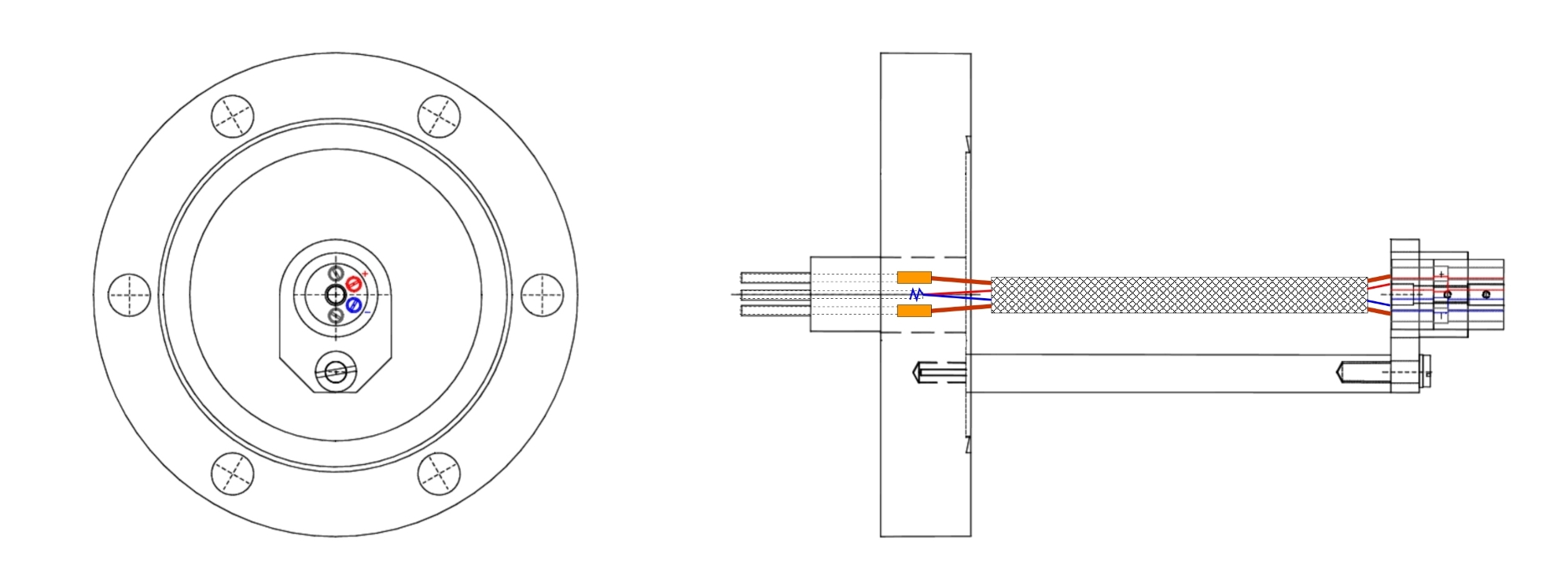

CF40 flangs with electrical feed through CF40 flangs with electrical feed through

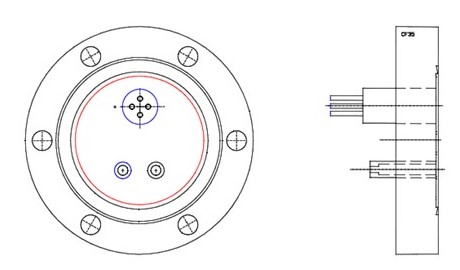

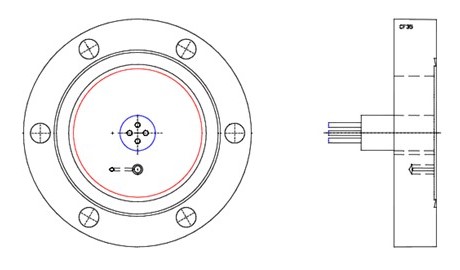

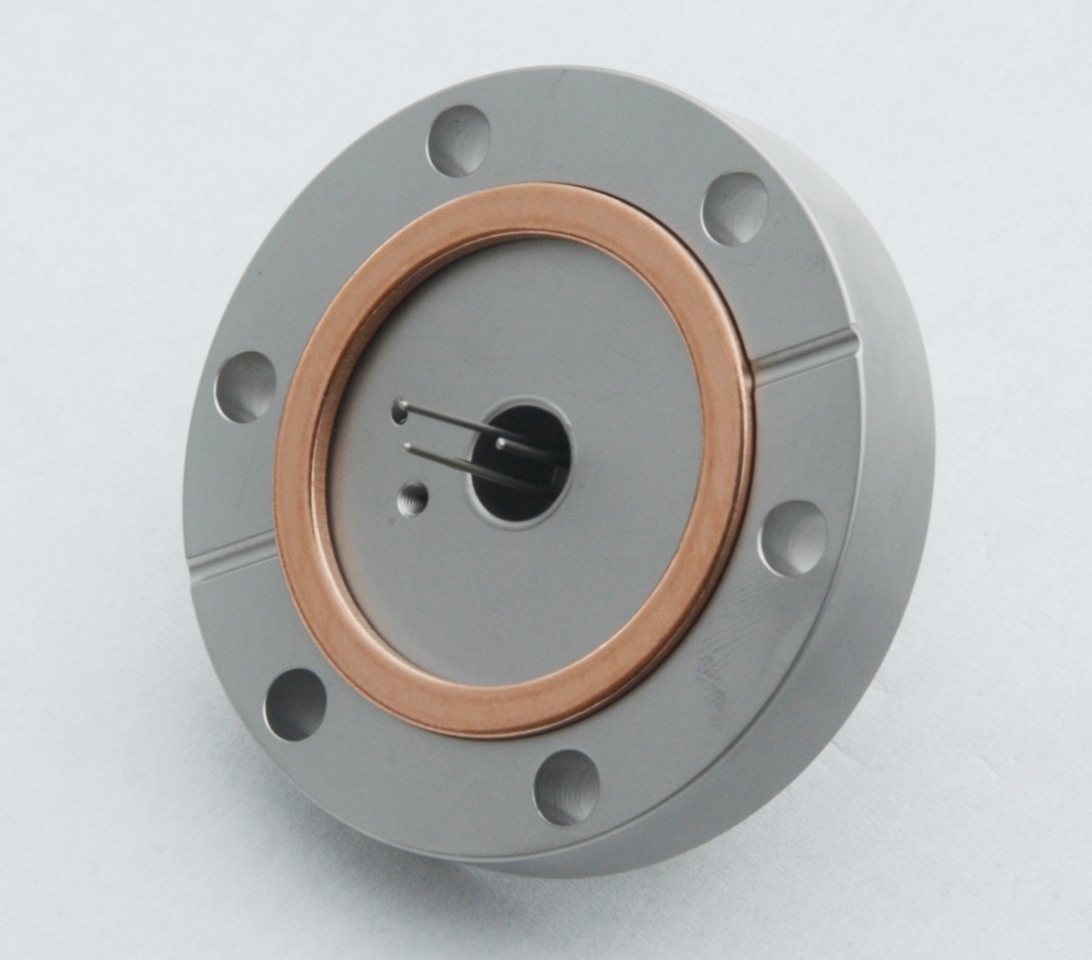

CF40 flange PS-CF40R with electrical feed-through type K, 1mm pins for power supply and vented M3 thread
CF40flange with electrical feed through CF40 flangs with electrical feed through

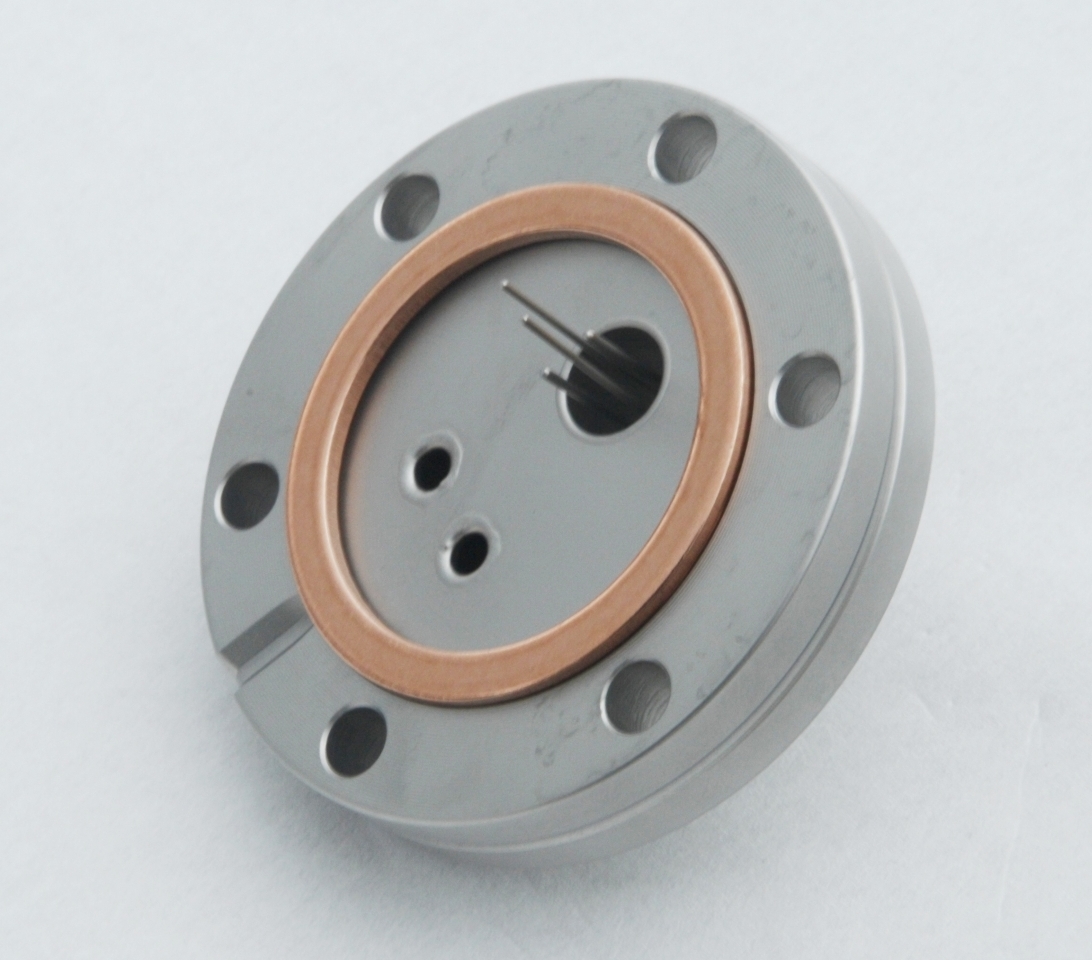

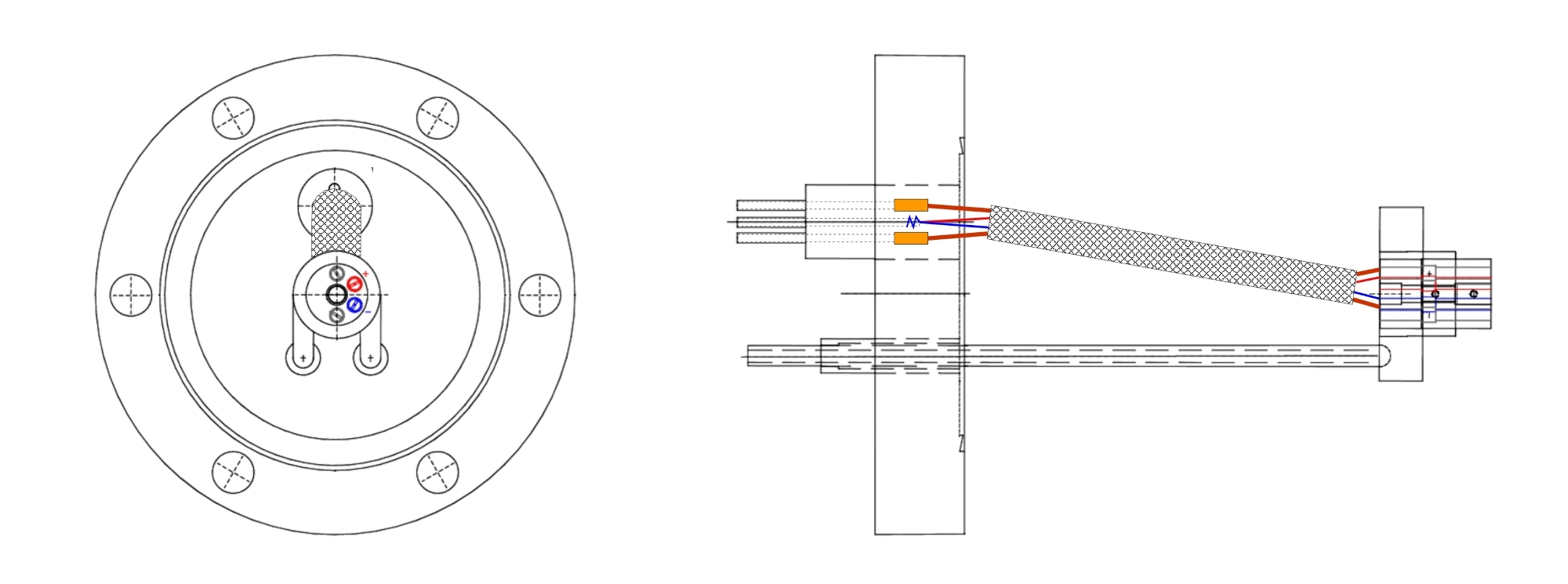

CF40 flange PS-CF40C with electric feed-through type K and 1mm pins for power supply and holes for soldering the cooling feed-through

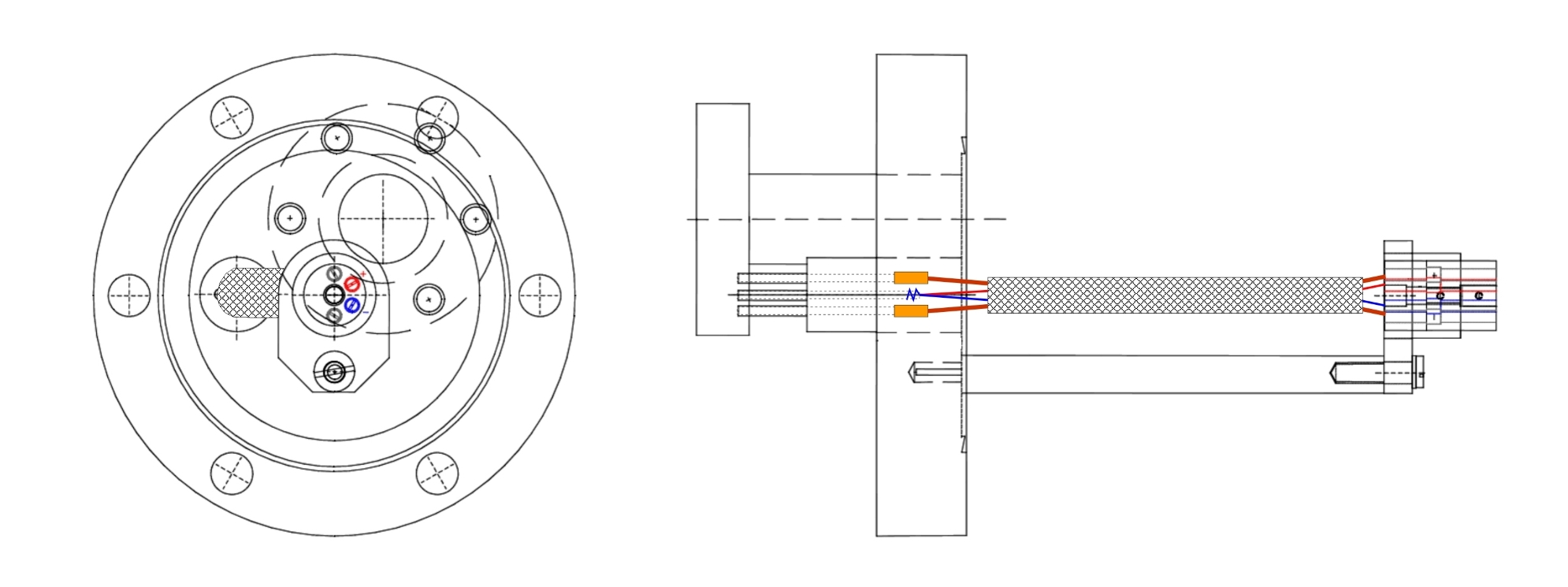

CF40flange with electrical feed through and CF16 flange CF40 flangs with electrical feed through and CF16 flange

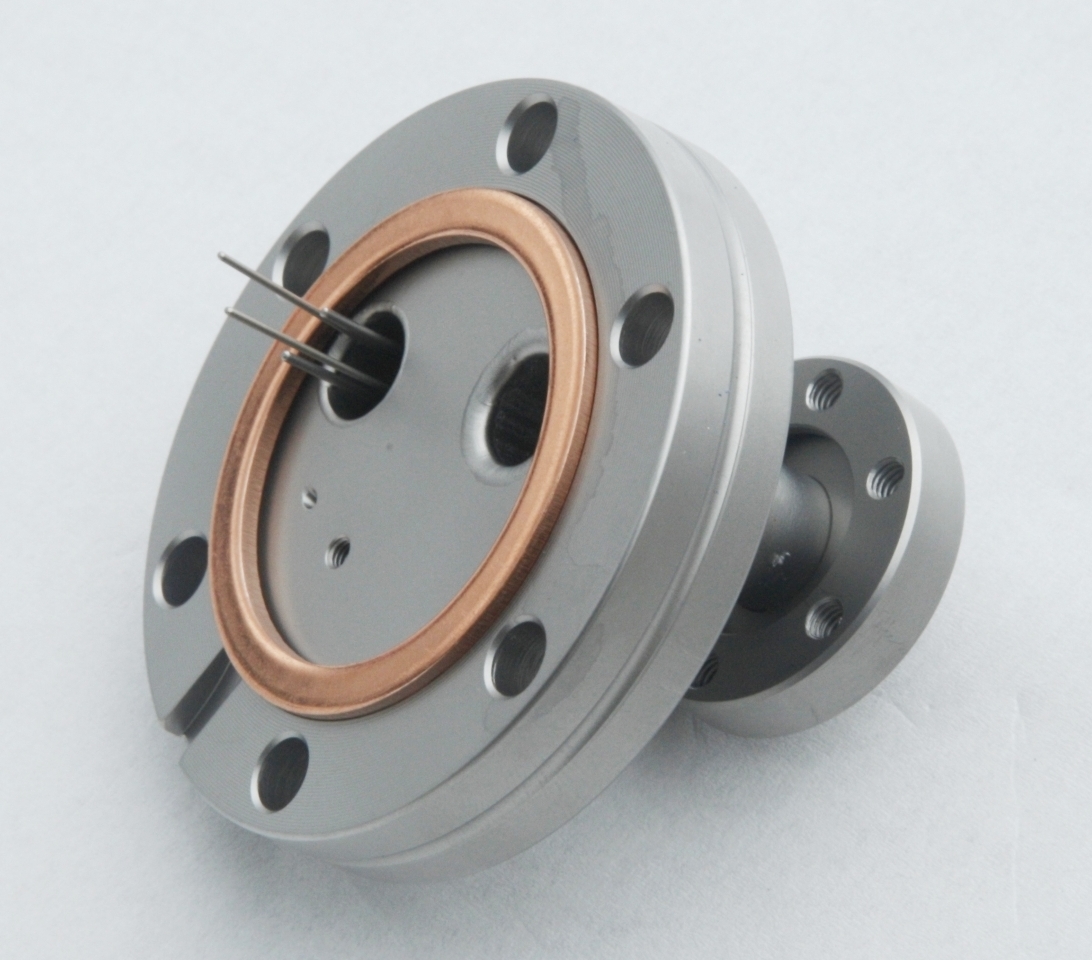

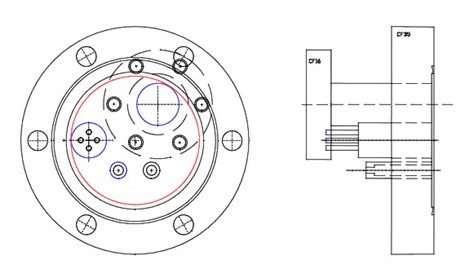

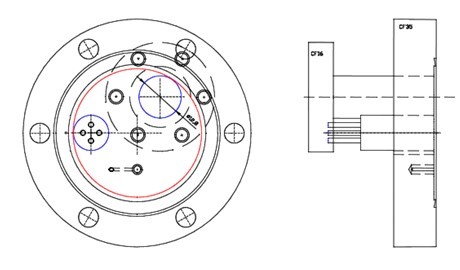

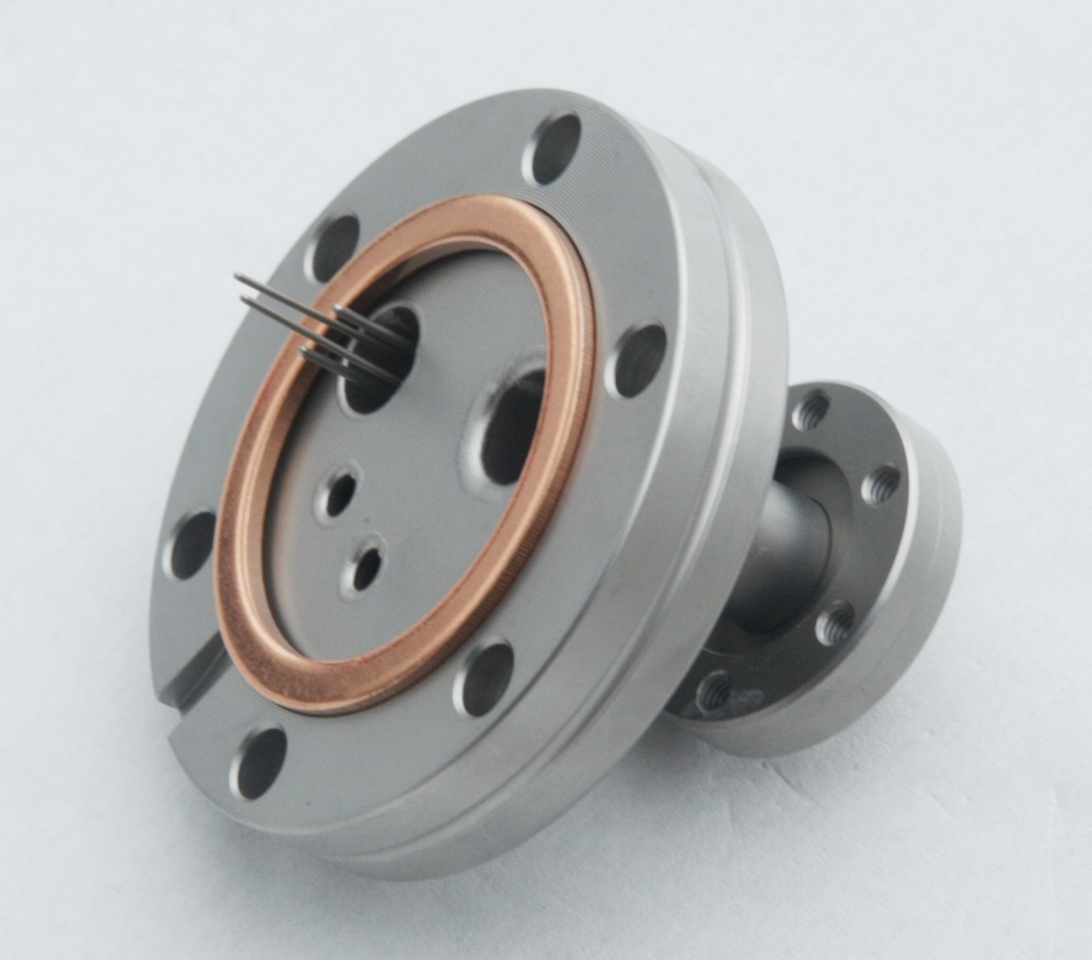

CF40 flange PS-CF40/16R with electric feed-through type K and 1mm pins for power supply, vented M3 tread and CF16 flange for mounting a rotary feed-through for a shutter

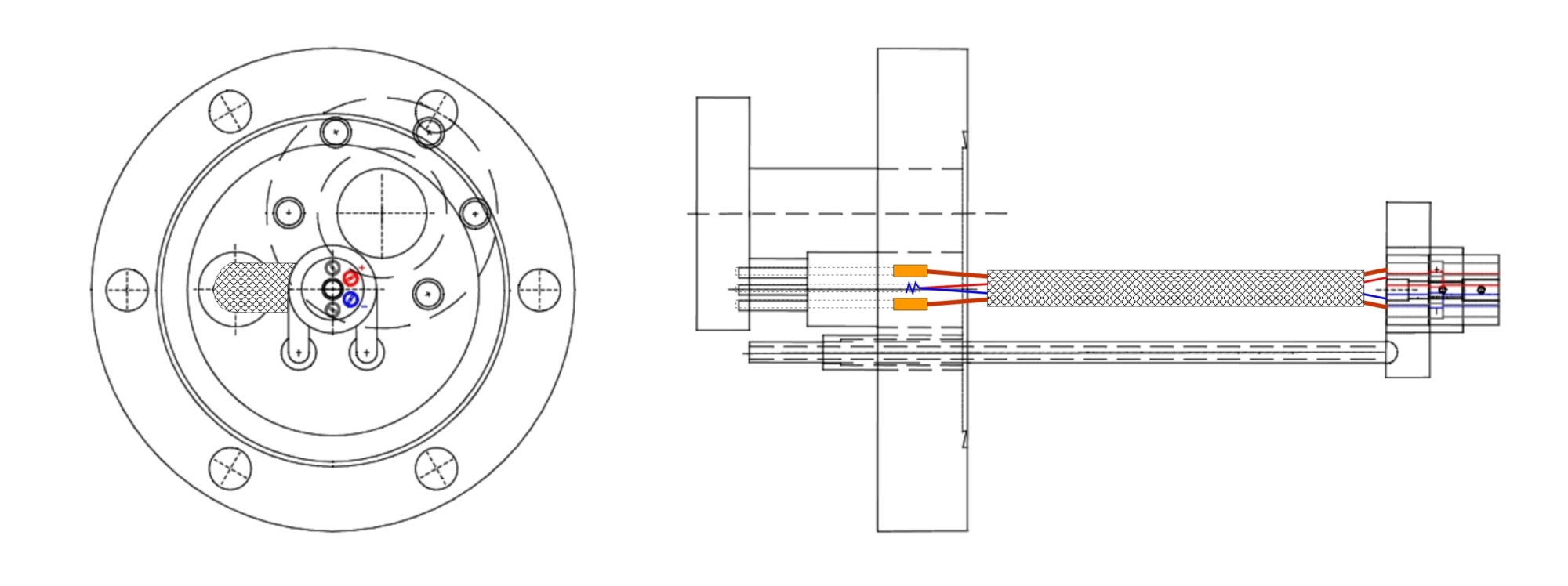

CF40flange with electrical feed through and CF16 flange CF40 flangs with electrical feed through and CF16 flange
CF40 flange PS-CF40/16C with electrical feed-through type K and 1mm pins for power supply, holes for soldering the cooling feed-through and CF16 flange for mounting a rotating feed-through for a shutter

Example to install point sources on a CF63 flange

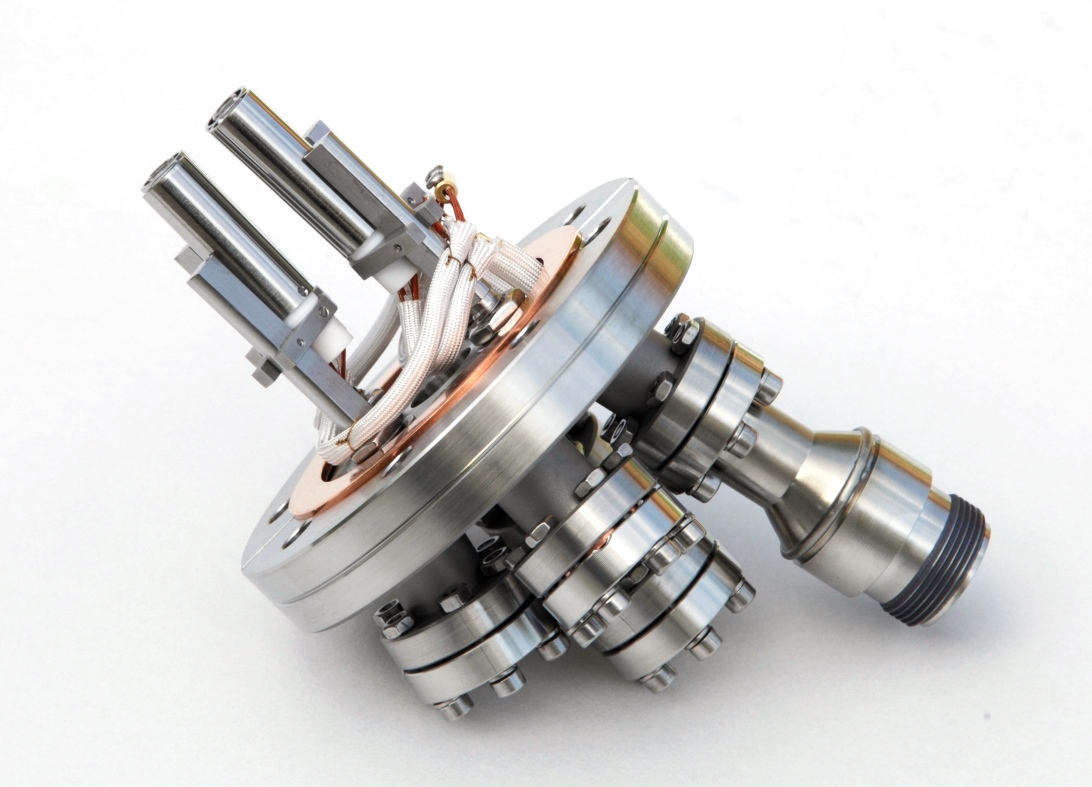

The image show a combination of four point sources. They are mounted by a 10mm hole fixed by a M1 screw. All heated can be adjusted to a focus point (sample).
The recommended focus length is 80mm-150mm (end of the crucibles to the sample).

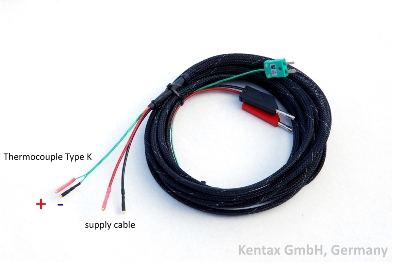

Thermocouple and supply cables uses one feed-through.
A turntable shutter in the center can be mounted additional.
4 point sources on CF63 flange
